Sundyne BMC Base Mounted Single Stage Integrally Geared Process Gas Compressors

Reliable and economical, the original fit-for-purpose Sundyne base mounted integrally geared compressors.

Process gas compressors are the heart of the process. Their reliability directly impacts the productivity and the efficiency of the midstream, hydrocarbon processing or chemical plant.

The Sundyne BMC – Base Mounted Horizontal Compressor line features single-stage integrally geared centrifugal designs that process engineers utilize for fit-for-purpose applica­tions including mole sieve dehydration, regeneration of the demethanizer, waste gas, hydrogen recycle and specialty chemical production.  Each compressor is custom built to provide pulsa­tion- and vibration-free operation, and to deliver oil-free process gas with zero emissions.

  • Flows to 850 acfm (1,450 AM³/hr)
  • Maximum working pressure 1,440 psi (100 bar)

NACE compliant Sundyne compressors do not rust or corrode.  Each unit is engineered in accordance with industry standards, and is designed to run continuously for 5 years without the need for costly maintenance or over-hauls.

Sundyne gas compressors provide the performance envelope, the feature set, the reliability ratings and the uncompromising efficiency needed to address the Best Efficiency Point (BEP) for any process gas application.

APPLICATIONS

  • Mole sieve dehydration
  • Regeneration of the demethanizer
  • Waste gas
  • Hydrogen recycle
  • Specialty chemical production

Benefits

Proven to be reliable, safe, compact and efficient, the Sundyne BMC line of integrally geared compressors provide a number of operational benefits:

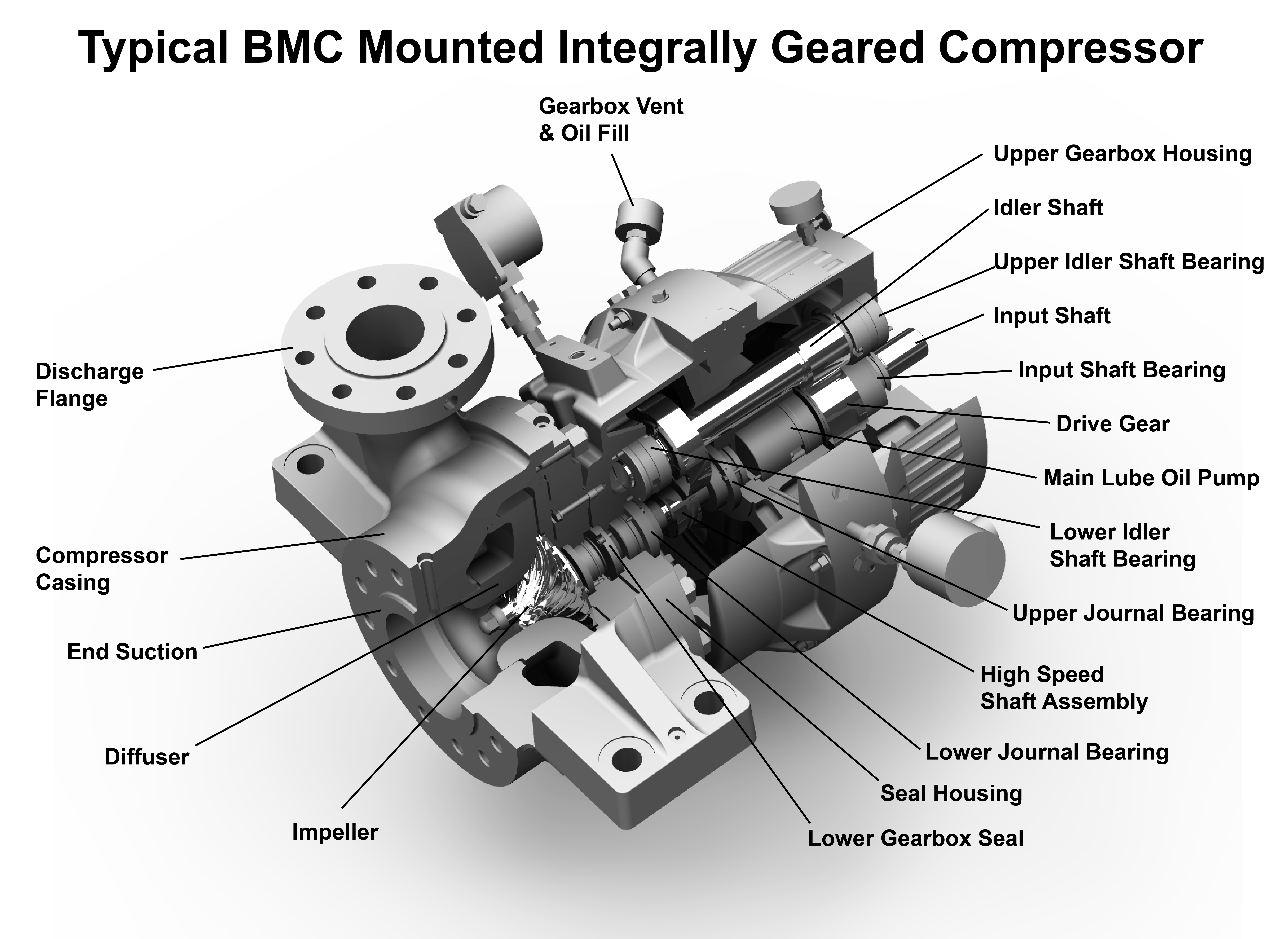

  • Single stage, overhung integrally geared compressor
  • Maximized up time
  • Saves space-25% the size of competing reciprocating, barrel, rotary screw and diaphragm compressors
  • Continuous operations for 5 years with no overhaul
  • Barske impeller low NPSH technology
  • Optimized compressor engineering to meet the BEP – Best Efficiency Point to save energy through efficiency

Specifications

US 60 Hz

  • Maximum Flow                                           to 3,550 acfm
  • Maximum Speed                                         33,600 rpm @ 60 Hz
  • Maximum Working Pressure                      1,200 psi
  • Temperature Range                                    -200 to 500°F
  • Maximum Motor Power                               500 HP
  • Hydro Test Pressure                                    1.5 X working pressure
  • Minimum Case Thickness                           .625″ and .75″
  • Corrosion Allowance                                   .125″
  • Impeller Clearance                                      .03″ to .05″
  • Shaft Diameter at Bearings                         1.5″
  • Mechanical Seal Sizes – Outboard             1.25″ and 1.5″
  • Mechanical Seal Sizes – Inboard                1.5″
  • Mounting                                                      Horizontal
  • Flanges                 600# ANSI RF Standard, other ratings optional
  • Suction Flange                                             3″, 6″ and 8″
  • Discharge Flange                                         2″, 4″ and 6″
  • Gearbox Oil Temp Range                          120 to 180°F
  • Gearbox Lubricant          ISO VG-46 General Purpose Oil
  • Gearbox Sump Capacity                            7 Quarts
  • Gearbox Lube System                              Pressurized
  • Gears           Hardened and precision ground, helical and/or spur
  • Input/Idler Bearings Deep groove, angular or solid journal as required
  • Output Bearings  Solid Journal or Tilt Pad thrust and radial as required
  • Coupling                        Standard flexible or spacer type

Metric 50 Hz

  • Maximum Flow                                     to 6,030 am³/hr
  • Maximum Speed                                   34,200 rpm @ 50 Hz
  • Maximum Working Pressure                85 bar
  • Temperature Range                              -130 to 260°C
  • Maximum Motor Power                         373 kW
  • Hydro Test Pressure                             1.5 X Max working pressure
  • Minimum Casing Thickness                 15.88 mm and 19.05 mm
  • Corrosion Allowance                             3.18 mm
  • Impeller Clearance                               .76 to 1.27 mm
  • Shaft Diameter at Bearings                  38.1 mm
  • Mechanical Seal Sizes-Outboard          31.8 mm and 38.1 mm
  • Mechanical Seal Sizes-Inboard            38.1 mm
  • Mounting                                               Horizontal
  • Flanges                                                 ISO
  • Suction Flange                        76.2 mm, 152.4 mm and 203.2 mm
  • Discharge Flange                    50.8 mm, 101.6 mm and 152.4 mm
  • Gearbox Oil Temp Range                 120 to 140°C
  • Gearbox Lubricant              ISO VG-46 General Purpose Oil
  • Gearbox Sump Capacity                     6.6 liters
  • Gearbox Lube System                          Pressurized
  • Gears               Hardened and precision ground, helical and/or spur
  • Input/Idler Bearings: Deep groove, angular or solid journal as required
  • Output Bearings: Solid Journal or Tilt Pad thrust and radial as required
  • Coupling                     Standard flexible or spacer type

Materials

Castings (carbon steel, stainless steel)

Impeller (17-4PHSS, Titanium)
