A small sealless magnetic drive pump that is big on value for safely and economically transferring process fluids
Designed as a compact, cost-effective and minimum maintenance pump for general transfer of process fluids. The GT is sized below ASME / ISO dimensions and has a number of features, which make it one of the most highly competitive pumps in its class. The GT is simple maintenance, saves space, and is interchangeable with popular transfer pumps.
GT pumps are close coupled and can be free-standing or baseplate-mounted. Prime mover specifications of all denominations can be catered for with a range of synchronous magnet drives rated to match.
- Sealless design for total product containment
- Low capital cost
- Compact modular design
- Low running costs
- Minimal downtime
- Supplied with ASME or ISO flanges
- Flows up to 140 GPM (30 m³/hr)
- Heads to 180 ft (55 m)
- Temperature Range -40 to 500°F (-40 to 260°C)
The HMD Kontro line of general service sealless magnetic drive, end suction centrifugal pumps comply with specifications required by the oil, gas, petroleum and heavy chemical industries. The GT is typically used in toxic, aggressive, hot, crystallizing and high value processes.
APPLICATIONS
Chemical Processing
- Chlor-Alkali
- Pesticides
- Insecticides
- Herbicides
- Fertilizer
Hydrocarbon Processing
- Sour water
- Sulfuric acid
- Benzene
- Xylene
- Toluene
Upstream
- Produced water
- LACT
Aquatic and Marine
- Seawater
- Caustic
Battery Manufacturing
- Sulfuric acid
- Potassium hydroxide
Biofuels
- Bio-diesel
- Ethanol
Food and Beverage
- Fragrances
Mining
- Sodium cyanide
- Sulfuric acid
- Hydrochloric acid
Pharmaceutical
- Silicon oil (Heat transfer fluid)
Pulp and Paper
- Chlorine
- Sulfuric Acid
Semiconductor Manufacturing
- Hydrofluoric acid
- Sulfuric acid
Steel Finishing, Pickling, Etching and Plating
- Hydrochloric acid
Water and Wastewater Treatment
- Sodium hypochlorite
- Sodium hydroxide
- Sulfuric acid
- Ferric Chloride
Our pumps combine cutting-edge technology with over seventy years of expertise and experience to give you complete piece of mind.
Product Security – Magnetic drive sealless pumps are the safest and most robust means for liquid transfer. By eliminating the seal, the primary opportunities for leaks associated with traditional sealed pumps are completely removed.
Efficiency – By improving performance and reducing maintenance calls, sealless magnetic drive pumps can dramatically lower downtime and lost production. In sum, this equates to maximized efficiency that can be seen on your bottom line.
Reliability – Sealless magnetic drive pumps have proven their reliability in even the most severe climate conditions, from the frozen tundra of Siberia to the deserts of the Middle East and the humid climes of Louisiana’s refineries. In fact, there are Sundyne HMD Kontro pumps that have been in operation for over 30 years and are still running today.
Safety – Sundyne HMD Kontro sealless magnetic drive pumps are manufactured to conform to international design and safety standards, including ATEX, ISO, API and ANSI requirements. Plus, with no mechanical seals to leak hazardous chemicals, these pumps offer a clear choice for process industry professionals who regularly deal with volatile or high value materials.
Cost-effective – Sealless magnetic drive pumps require less monitoring and maintenance than traditional sealed designs, equating to substantial savings over the life of the pump.
Service – Global service centers keep HMD Kontro sealless magnetic drive pumps operating with peak performance. Standard pumps and parts are available from the factory and in the field.

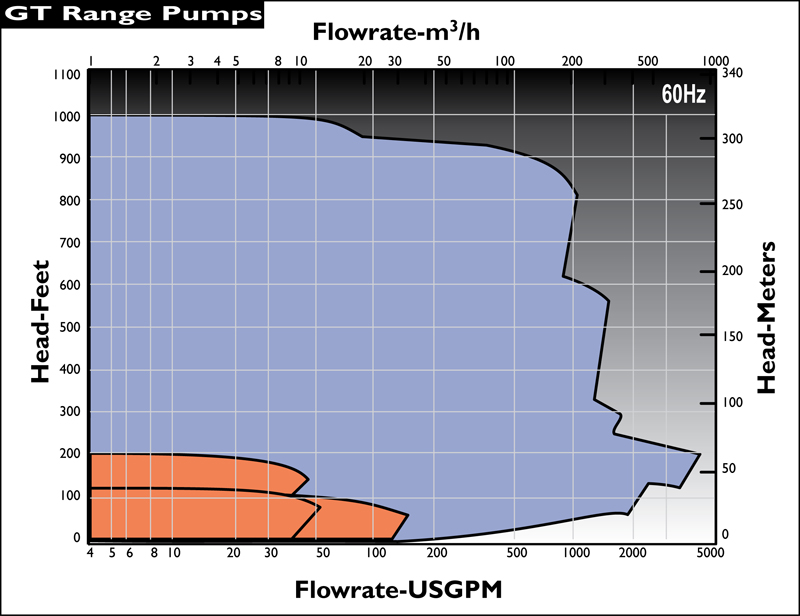

US 60 Hz
- Heads to 1,146 ft
- Flows to 3,647 gpm
- Maximum Motor Power 535 HP
- Temperature Range -40 to 660°F
- Maximum Case Working Pressure 580 psi
- Hydrotest Pressure 870 psi
- Maximum Viscosity 200 centistokes
- Solids Range Maximum of 5% w/w less than 150 microns
- Motor Details Industry standard
- Mounting Configuration Horizontal close and long coupled
- Dimensional Standards API 610 OH2, ISO 13709
- Number of Available Hydraulics 28
- Available Flanges 150#/300# RF

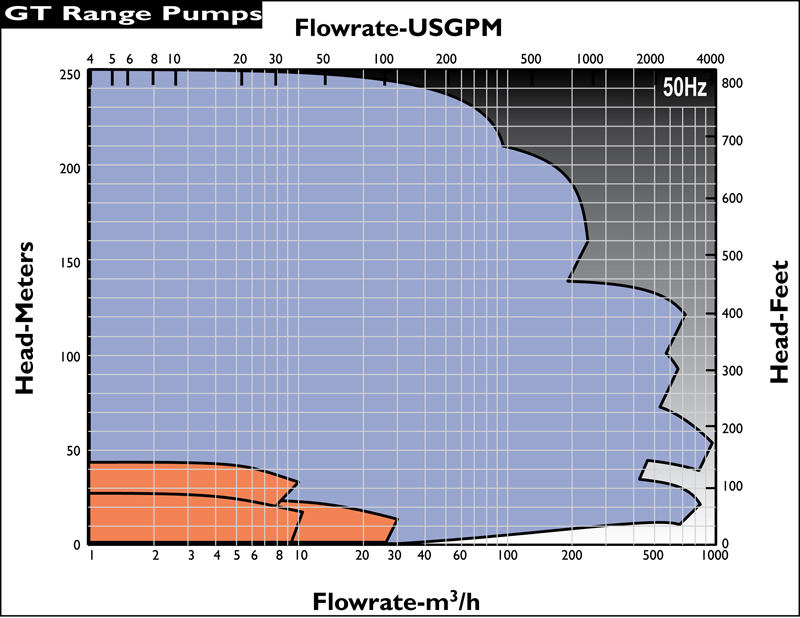

Metric 50 Hz
- Heads to 245 m
- Flows to 3,467 m3/hr
- Maximum Motor Power 400 kW
- Temperature Range -40 to 350°C
- Maximum Case Working Pressure 19.3 kg/cm2
- Hydrotest Pressure 41 kg/cm2
- Maximum Viscosity 200 centistokes
- Solids Range Maximum of 5% w/w less than 150 microns
- Motor Details Industry Standard
- Mounting Configuration Horizontal close and long coupled
- Dimensional Standards ISO 13709
- Number of available hydraulics. 28
- Available Flanges 150#/300# RF
Standard materials of construction
- Stainless steel with silicon carbide internal bearings.
Other material options are available on request
- Alloy 20, C or B with silicon carbide/carbon bearings
- PTFE gaskets are available
- Various flange options are available as standard.
POWER MONITOR
Installed in the Motor Control Center (MCC), a power monitor measures the power required to operate the pump. By setting High and Low trip points, the power monitor is the perfect solution for protecting your pump from:
- Dry running
- Low flow operation
- High flow operation
- Severe cavitation
- Magnet de-coupling
New ZeroLoss Containment Shell
Reduces Power Losses in the Pump to Zero
Excellent energy savings can now be made thanks to the introduction of the ZeroLoss containment shell for larger pumps. The elimination of eddy current losses can result in up to a 20% saving in power consumption, further enhancing the benefits and green credentials of magnetic drive technology from Sundyne HMD Kontro.
The advantage increases in proportion with the magnetic coupling size and is particularly appropriate for larger pumps, making the magnetic drive option even more attractive because through life costs are reduced further. Lower powerconsumption not only results in reduced running costs but alsopotentially provides lower initial capital costs, as smaller motors can be specified.
In addition, installation costs can be reduced as lower-rated cabling may be required, and there are space-savings from the ability to use a smaller base plate for the pump and motor combination.
LONG COUPLED
Long coupled configurations conform to API 685, API 610, ASME/ANSI B73.3 and ISO 2858 dimensions for easy replacement of mechanically sealed pumps (utilizing same baseplate, coupling, guard and motor).
SECONDARY CONTROL & CONTAINMENT
HMD Kontro Sealless magnetic drive pumps are available with secondary control devices to restrict any leaks. Mechanical devices are fitted to the drive shaft assembly and are activated in the unlikely event of containment shell failure. Also, the pump coupling housing is fitted with gaskets to eliminate any leaks across the joining faces.
Solids Handling
All HMD Kontro pumps, as standard, can handle up to 5% hardsolids and 150 microns diameter. The solid size can increase by fitting a self-cleaning in line filter, to 8% solids and 250 microns.
For larger solids HMD Kontro can provide pumps with a clean flush system or filter built into the flush pipework.
